AVLP 3 - 600kg Vacuum Lifter

    << Previous

Brand: Aardwolf
Product Code: AVLP3
Price: $7,065.00 +GST
   - OR -

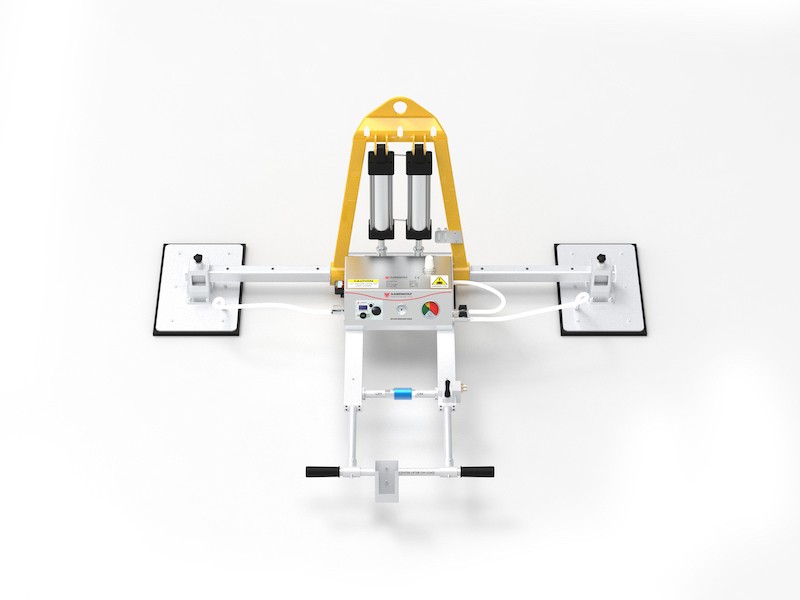

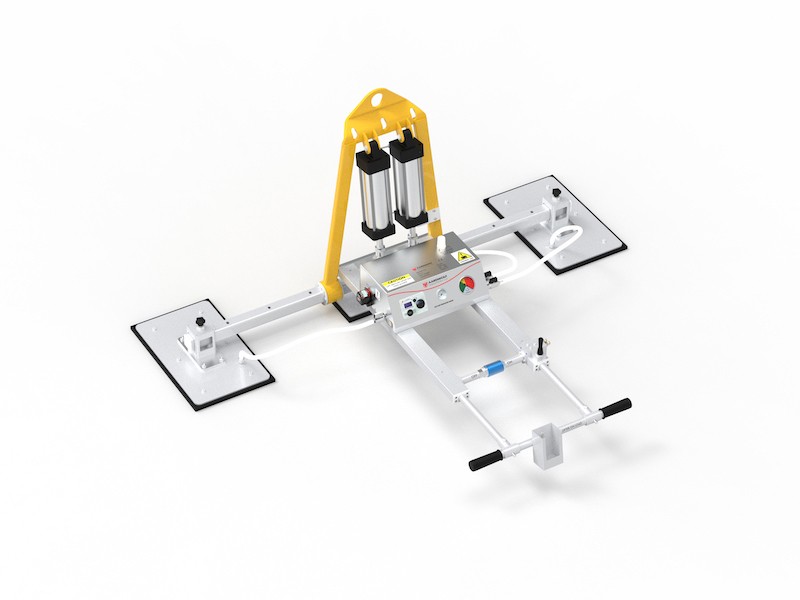

AVLP 3 - 600kg Vacuum Lifter

This vacuum lifter is designed to lift smooth or rough marble & granite.  Features rugged construction with the added ability to lift and then tilt the stone.  Powered by compressed air.


Features

  • Pneumatic vertical-horizontal tilting from 0 to 90° by pneumatic pistons.
  • Stainless steel vacuum tank ensuring safe pickup in the event of a sudden power break to the vacuum pump.
  • Acoustic and visual alarm system.  Independently powered by a rechargeable 3.7V battery.
  • Slider valve with on & off position for the attachment of material to vacuum pads and release of material from vacuum pads.

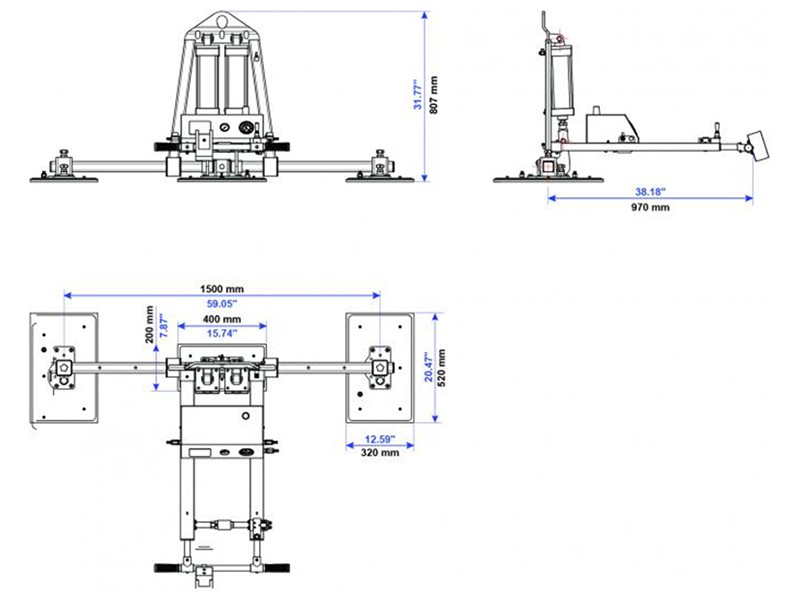

Specifications

Suction Pad Dimension: 2 outer pads of 520 x 320mm & 1 central pad of 420 x 220mm
Number of Pads: 3
Lifting Capacity:
- Horizontal Lifting: 720kg
- Vertical Lifting : 600kg

Option: All Suction pads 420 x 220mm, lifting capacities to 690kg horizontally and 345kg vertically.

Compressed Air Requirement
Air Consumption: 180 l/min
Supply Air Pressure: 5 bar at the vacuum lifter

Alarm System Battery Information
- Lipo Battery Capacity: 3.7V 2000mAhx1
- Standby Time: 720h
- Non Stop Working Time: 7h
- Charging Requirements:
  + Input: 220V 50-60Hz
  + Output: 5V 1A
- Charging Cycle: 1000 times
- Charging Time: 2h

Package Dimensions: L1480 x W390 x H960mm
Weight Of Unit: 72kg

Questions (1) Answers (1) | Expand All
  • Product Code: APCCL and Product Code:
    May I get customized over head electrical motor for hydraulic operation Product Code: APCCL and Product Code: AVLP 3 combined pneumatic operation for vacuum with extended cable operator can handle unit from ground for lifting and shift slab from ground to truck for loading and unloading
    aslam
    • A
      Hi Aslam,

      Unfortunately our counterbalance cranes are not suitable to use in conjunction with our AVLP vacuum lifters.  They're more suited to overhead jibs, column mounted jibs, etc.
      Mark Corbett
      Was this answer helpful?0
