Vacuum Glass Lifter AVGLP8

    << Previous

Brand: Aardwolf
Product Code: AVGLP8
Price: $8,680.00 +GST
   - OR -

Vacuum Glass Lifter AVGLP8

Vacuum Glass Lifter AVGLP8

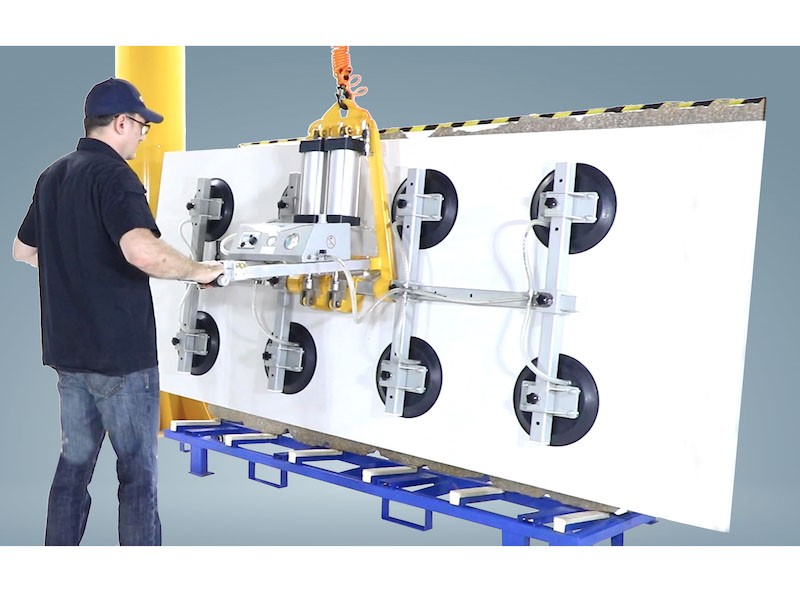

This vacuum lifter is suitable for lifting glass sheets in large sizes as well as smooth stone such as porcelain.  Features rugged construction with the added ability to lift and tilt the slab materials.


  • Pneumatic vertical-horizontal tilting from 0° to 90°
  • Automactic vacuum pumping if vacuum loss occurs
  • Acoustic and visual alarm system
  • Attach/release material with an on/off slide valve

We declare that this product is in conformity with the following standard: AS 4991-2004 Lifting Devices.


Suction Pad Dimension: Seal to seal 300mm
Number of Pads: 8

Lifting Capacity:
- Horizontal Lifting: 800kg
- Vertical Lifting : 400kg

Compressed Air Requirement
Air Consumption: 180 l/min
Supply Air Pressure: 5 bar at the vacuum lifter

Alarm System Battery Information
- Power Supply: 3.7V Lipo Battery
- Battery Capacity: 2000mAh x1
- Standby Time: 720h
- Charging Cycle: 1000 times
- Charging Time: 2h
- Non Stop Working Time: 7h

Packaging Dimensions: L2050 x W430 x H960mm
Weight Of Unit: 108kg
