Vacuum Glass Lifter MR-250

    << Previous             Next >>

Brand: Aardwolf
Product Code: AVGLP4-MR-250
Price: $3,900.00

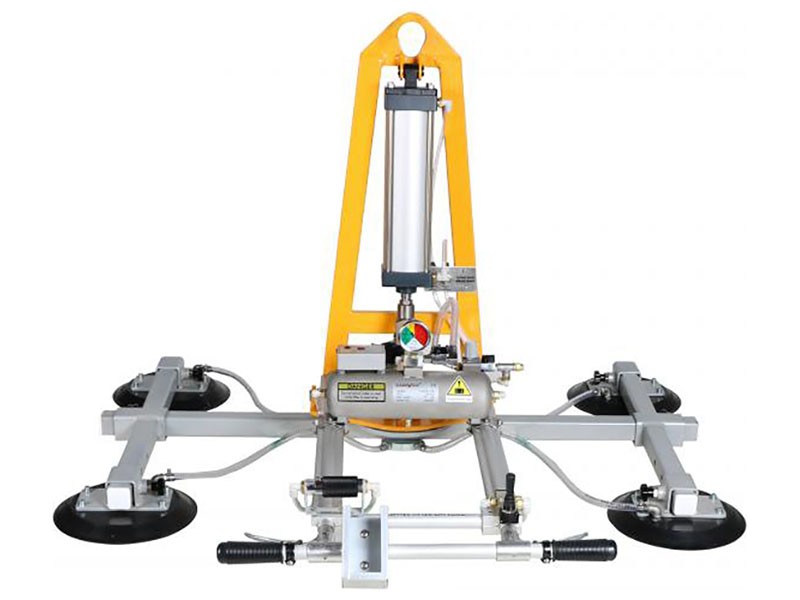

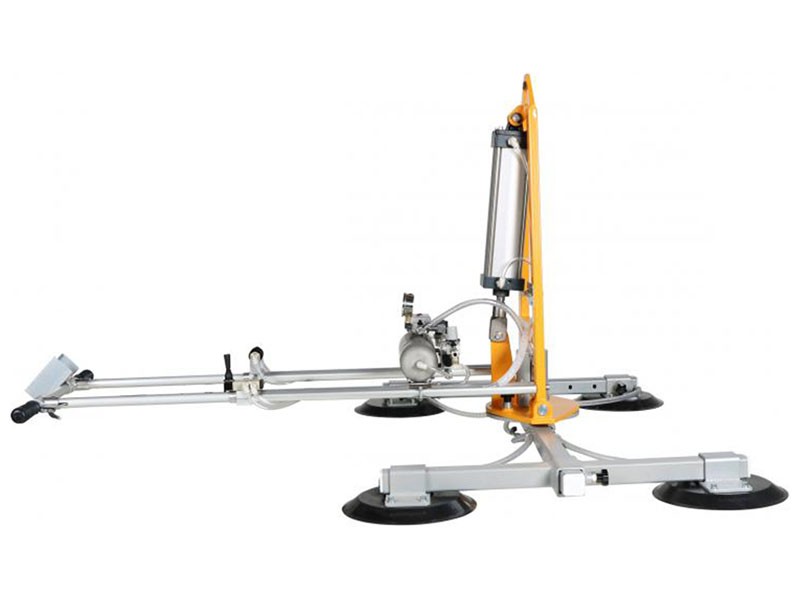

Vacuum Glass Lifter MR-250


Vacuum Glass Lifter MR-250

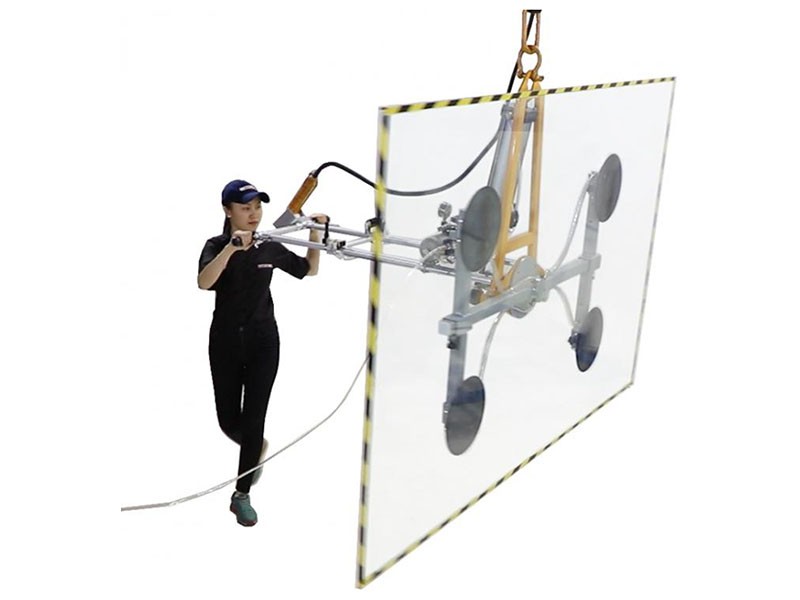

This vacuum lifter is designed to lift glass.  Powered by compressed air, the lifter features rugged construction with the added ability to lift, tilt and manually rotate the glass in vertical 360 degree rotation.


Features

  • Pneumatic vertical-horizontal tilting from 0 to 90° by pneumatic pistons.
  • Manual 360° rotation in the vertical direction.
  • Stainless steel vacuum tank ensuring safe pickup in the event of a sudden power break to the vacuum pump.
  • Acoustic and visual alarm system.  Independently powered by a rechargeable 3.7V battery.
  • Slider valve with on & off position for the attachment of material to vacuum pads and release of material from vacuum pads.



Specifications

Suction Pad Dimension: Diameter of 300mm (seal to seal 280mm)
Number of Pads: 4
Lifting Capacity: 250kg


Compressed Air Requirement
Air Consumption: 100 l/min
Supply Air Pressure: 5 bar

Alarm System Battery Information
- Lipo Battery Capacity: 3.7V 2000mAhx1
- Standby Time: 5000h
- Non Stop Working Time: 7h
- Charging Requirements:
  + Input: 220V 50-60Hz
  + Output: 5V 1A
- Charging Cycle: 1000 times
- Charging Time: 2h

Package Dimensions: L1460 x W350 x H1190mm
Weight: 81kg
