Brand: Aardwolf
Product Code: ABR01
Price: $976.00

Bundle Rack - 3m

A good racking system optimises the storage area and efficiency of your operation, providing many years of reliable service.

The Aardwolf bundle racks are ideal for distributors and shops that stock large bundles of granite and marble. As inventory is used, posts can be adjusted horizontally, thus eliminating unused portions of the rails, making space available for replacement slabs and bundles.  Please review our rack selection and specifications to select the correct rack components.


Construction of the Aardwolf Bundle Rack

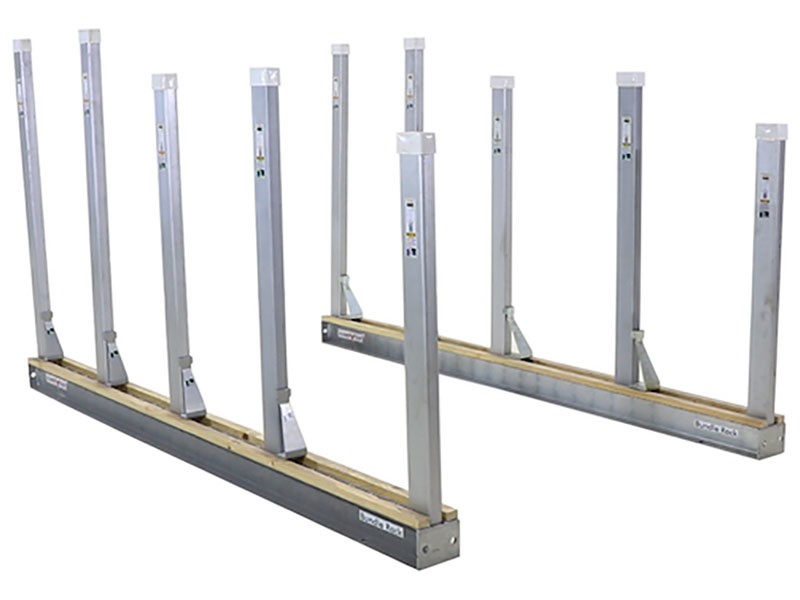

The Aardwolf bundle racks consist of a pair of galvanised steel rails 3m long, together with rectangular steel tubular posts.  The rectangular post can be positioned anywhere along the rack.  All posts are manufactured from rectangular tube steel with a minimum yield strength of 345 MPa, ensuring safety for the vertical storage of slab bundles.


Features

  • Galvanised steel rails 150mm wide, 120mm high and 3m long can be butted together for desired length.
  • The rails contain rectangular post pockets of 100 x 50mm spaced 10mm apart allowing for adjustment of post in 110mm increments for maximum storage efficiency.
  • The rack heights are 140mm from the floor for alignment of glass or stone dolly used for transporting.
  • 100 x 50mm rectangular tube posts are galvanised and topped with white rubber post caps to prevent scratches and marking to polished surfaces.
  • Two 20 x 50mm timber battens per rail protect the slab edges and the finish on the rails.



Specifications

Rail Length:
3m
For Use With Posts: 100 x 50mm
Weight: 64kg

Note: Posts available in 3 heights of 1200mm, 1400mm & 1600mm.

Pricing is for a pair of rails.


Storage Capacity

The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the type of post selected, the slab thickness and dimensions.  Aardwolf has developed a simple calculator specifically for the users to calculate the slab storage capacity.

To view Aardwolf's handy Slab Rack Storage Calculator Click here.
This tool will help you decide how many and what type post you require.

Warning: Do not use the Aardwolf Slab Rack Storage Calculator to calculate the storage capacity of competitor's posts as they commonly use posts with a 3mm wall thickness and steel of a lower strength, sometimes with yield strength as low as 210 MPa.
