Slab Rack - 3m

         Next >>

Brand: Aardwolf
Product Code: ASR01
Price: $916.00

Slab Rack - 3m

A good racking system optimises the storage area and efficiency of your operation, providing many years of reliable service.  As inventory is used, posts can be adjusted horizontally, thus eliminating unused portions of the rails, making space available for replacement slabs and bundles.  Please review our rack selection and specifications to select the correct rack components.

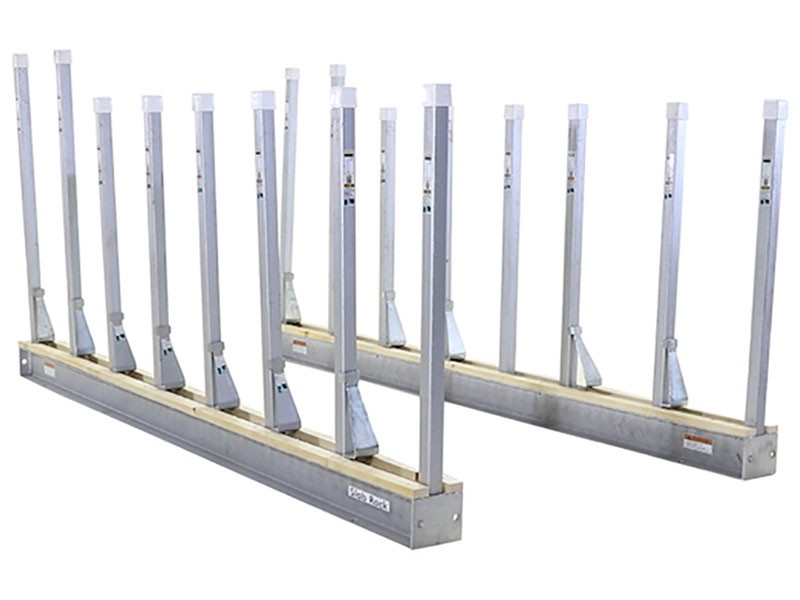

Construction of the Aardwolf Slab Rack

The Aardwolf slab racks consist of a pair of galvanised steel rails 3m long, together with square steel tube posts.  The square post can be positioned anywhere along the rack.  The user has a selection of two different strength posts.  All posts are manufactured from square tube steel with a minimum yield strength of 345 MPa ensuring safety for the vertical storage of slab bundles.


Features

  • Galvanised steel rails 150mm wide, 120mm high and 3m long can be butted and bolted together for desired length.
  • The centre of the rails has 50mm square holes spaced 5mm apart allowing for adjustment of post in 55mm increments for maximum storage efficiency.
  • The rack heights are 125mm from the floor for alignment of glass or stone dolly used for transporting.
  • 50mm square tube posts are galvanised and topped with a 60mm square rubber post caps to prevent scratches to polished surfaces.
  • Two 20 x 50mm timber battens per rail protect the slab edges and the finish on the rails.



Specifications

Rail Length:
3m
For Use With Posts: 50 x 50mm
Weight: 58kg per rail

Note: Posts available in 5 heights of 800mm, 1200mm, 1400mm, 1600mm & 1800mm.

Pricing is for a pair of rails.


Storage Capacity

The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the type of post selected, the slab thickness and dimensions.  Aardwolf has developed a simple calculator specifically for the users to calculate the slab storage capacity.

To view Aardwolf's handy Slab Rack Storage Calculator Click here.
This tool will help you decide how many and what type post you require.

Warning: Do not use the Aardwolf Slab Rack Storage Calculator to calculate the storage capacity of competitor's posts as they commonly use posts with a 3mm wall thickness and steel of a lower strength, sometimes with yield strength as low as 210 MPa.
