Aardwolf Lifter 20A

    << Previous             Next >>

Brand: Aardwolf
Product Code: AL20A
Price: $1,006.00 +GST
   - OR -

Automatic Slab Lifter AL20A

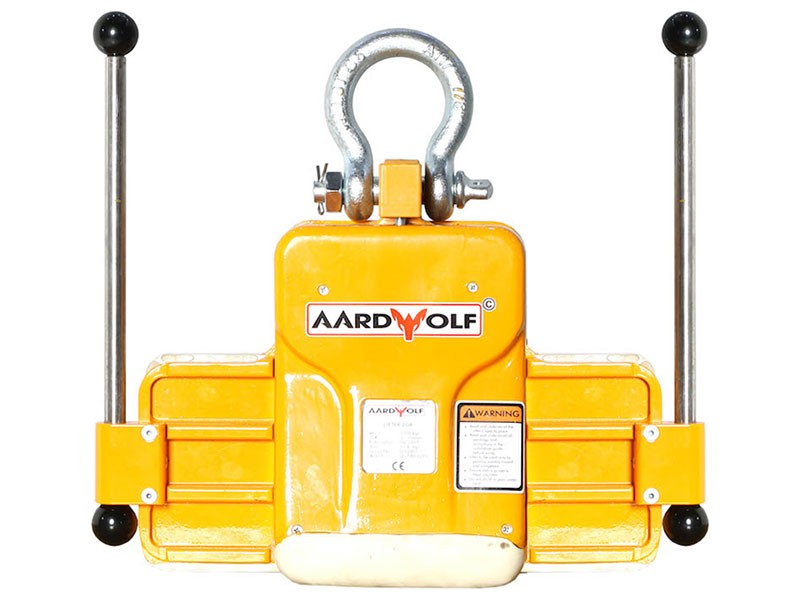

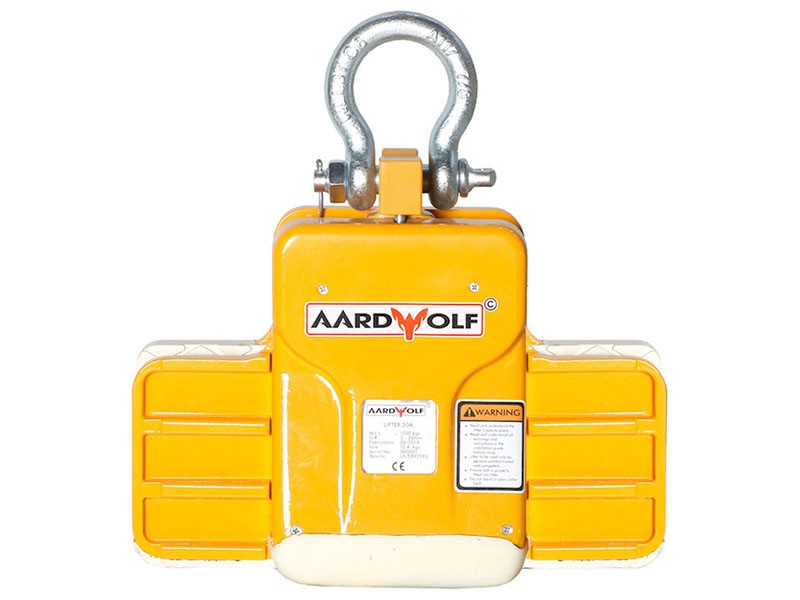

Aardwolf Lifter 20A

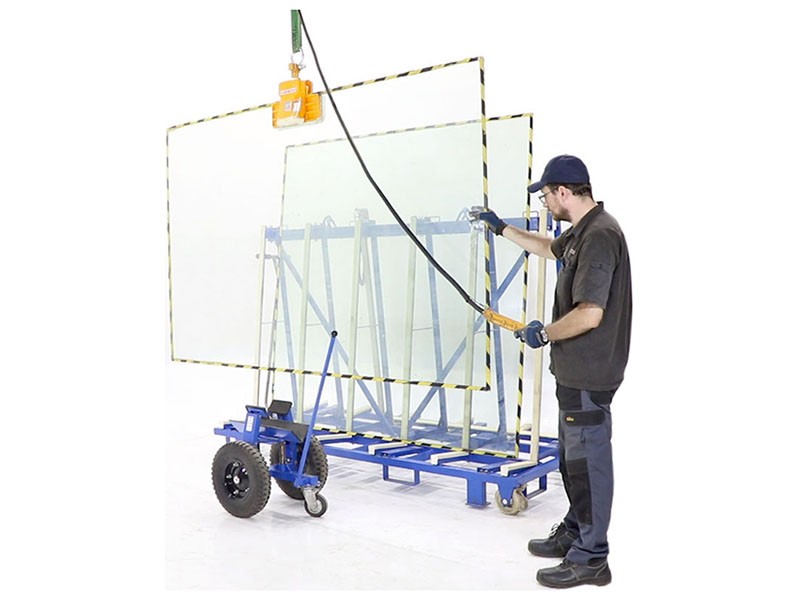

The new Aardwolf Slab Lifter 20A is a new version of the Aardwolf Slab Lifter 20.  The main features of the Aardwolf Slab Lifter 20A are its extra wide jaws and integrated auto-lock, unlock mechanism (patent pending), which allows the clamp to automatically grip slabs on pick-up and release slabs on set down.  The Aardwolf Slab Lifter 20A is the ideal mechanical slab clamp for lifting and moving thin sheets of engineered porcelain, glass and other thin ceramic sheets.


Application

For lifting 3 to 20mm thick material (WLL 800kg).


Features

Size: Being of a compact construction, the Aardwolf Lifter 20A allows for close packed slabs to be lifted out of racks and containers.  Lower height slabs placed along side of taller slabs offer no problem, as is the case with scissor clamps.

Versatile: Ideal for construction work.  Because the clamping mechanism is at the front of the slab, this allows panels to be placed close against walls.

Safety: Requires only a small movement of the slab to engage and grip the slab, which is generally well below the over balance angle thus eliminating the danger to the operator.

Secure: The Aardwolf clamps grip slabs firmly.  The Aardwolf Lifter 20A has a force multiplying factor of approximately 3 to 1.


Specifications

Package Dimensions: L440 x W150 x H360mm
Weight: 16.2kg
