Aardwolf Slab Lifter AL30AWJ
Aardwolf Slab Lifter with Wide Jaw - AL30AWJ
Aardwolf Slab Lifter AL30AWJ

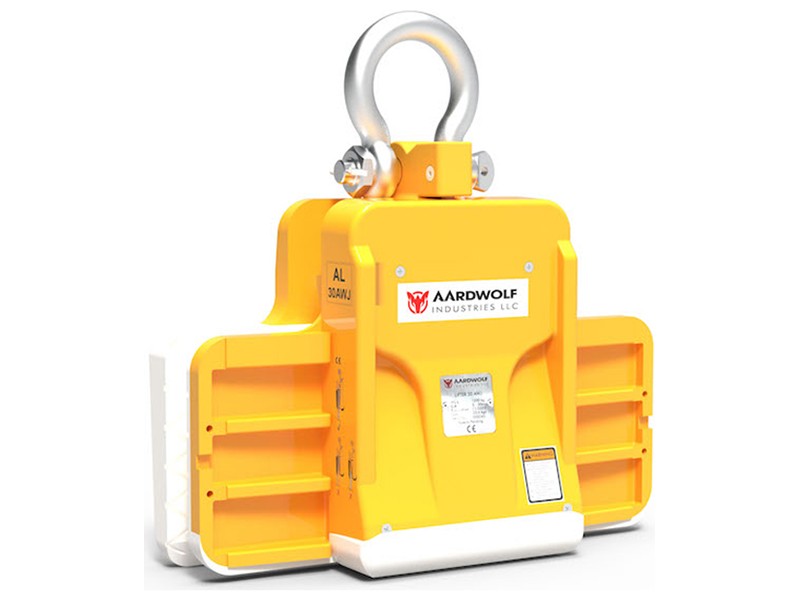

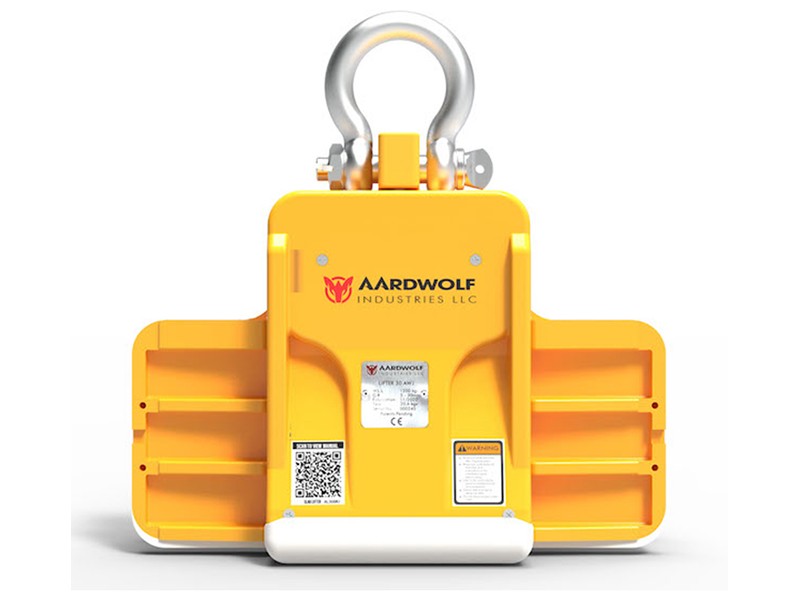

The Aardwolf Slab Lifter AL30AWJ is a versatile lifting device with a wide jaw design, making it well-suited for delicate materials such as porcelain, glass, marble, etc. This lifting clamp leaves no marks on delicate materials, while at the same time, it is also suitable for handling heavy slabs such as thick granite. Furthermore, this clamp is equipped with a new innovative auto lock and unlock mechanism, allowing the clamp to grip and release slabs automatically.
Application
For lifting 0 to 30mm thick material (WLL 1200kg).
Features
Size: Being of a compact construction, the Aardwolf Lifter AL30AWJ allows for close packed slabs to be lifted out of racks and containers. Lower height slabs placed along side of taller slabs offer no problem, as is the case with scissor clamps.
Versatile: Ideal for construction work. Because the clamping mechanism is at the front of the slab, this allows panels to be placed close against walls.
Safety: Requires only a small movement of the slab to engage and grip the slab, which is generally well below the over balance angle thus eliminating the danger to the operator.
Secure: The Aardwolf clamps grip slabs firmly. The Aardwolf Lifter AL30AWJ has a force multiplying factor of approximately 3 to 1.
We declare that this product is in conformity with the following standard: AS 4991-2004 Lifting Devices.

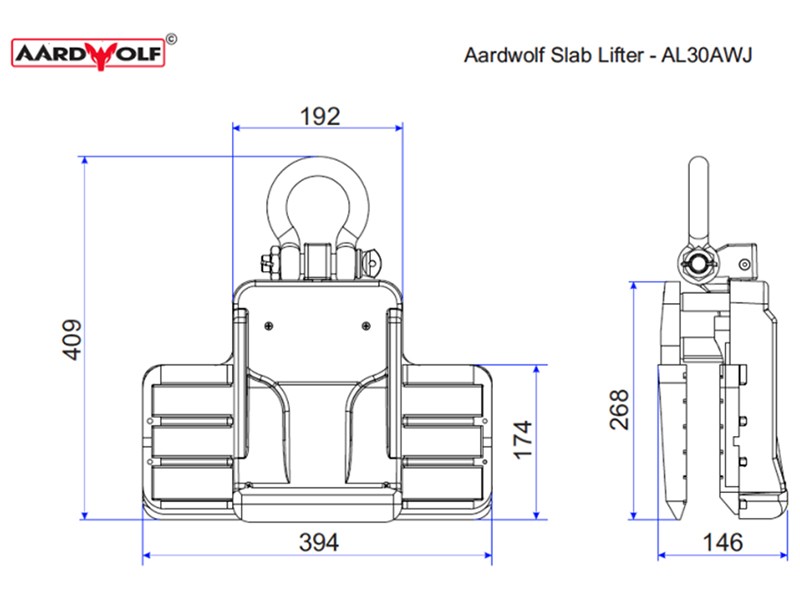

Specifications
Package Dimensions: L440 x W150 x H360mm
Weight: 23.8kg
